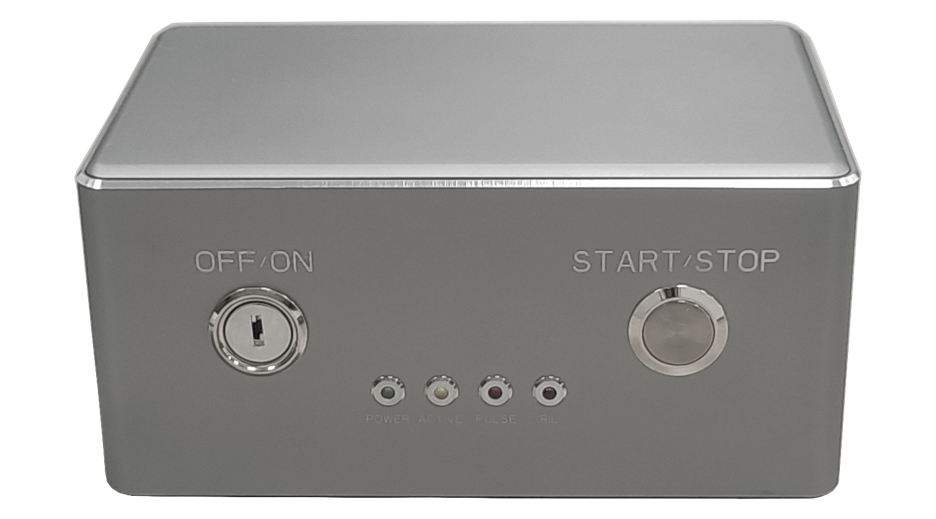

SuperLux High-Speed VCSEL Laser Illumination

SuperLux is an excellent laser light source for high-speed camera illumination. It applies VCSEL chips which provides much higher power and intense light.

Download Catalog

Advanced VCSEL Technology

Multi-junction VCSELs are more advantageous than edge emitting lasers and LED in providing illumination to camera because of their narrower wavelength range over temperature thus consuming less power with better illumination effect.

VCSEL does not require a back facet monitor like a diode laser; it can be driven like a LED, but at much higher power levels with a much lower drive current.

Features:

1.The SuperLux is applied with our own VCSEL chip. The spectrum width is <2nm and the temperature drift is <0.07nm/°C. Such performance is friendly to users who use narrow filters (10nm width). The other lasers have width at 5nm-8nm and temperature drift at 0.3nm/°C。 Such specification put strict requirement for the filter. One filter might not be able to cover full spetrum under different drivers or environment, This causes lower power efficiency.

2.Our VCSEL laser can avoid issues which EEL laser has such as COD,etc. It is more reliable. It can work for 30,000 hours.

3.Our laser can work continuously which other laser cannot.

Specification

System content	Laser unit, control unit, liquid lightguide (Lumatec Standard, without filter), PC software
Laser wavelength	808/850/940nm
Peak optical power	100W-1000W
Pulsed width	10ns-10us
Repetition frequency	1-100KHz , with synchronization trigger signal function (for the camera) Supports external synchronization trigger
Adjustable pulse width	Narrow pulse (width＜10ns）, Wide width (100ns-10us)
Editable pulse train	1~10
Minimum pulse duration （at reduced peak power）	10ns
Minimum pulse duration （at full peak power）	100ns
Amount of pulses per frame possible	up to 10
Duty cycle continuous operation (typically for setting up)	1/1000
Duty cycle high speed operation	1/100
Duration of high speed	continuous
Applications	Welding monitor imaging Flows/droplets/sprays/jets imaging Additive manufacturing Materials testing Ballistics/explosions Shockwaves Schlieren / Shadowgraphy
